The EHMS is designed to be a multi-threat resilient system. Its integrated shielding protects against directed energy weapons and electromagnetic interference, while its robust, dense construction provides inherent resistance to kinetic and ballistic attacks. Furthermore, by creating a secure physical envelope, it offers a critical layer of protection even when cyber-physical systems are compromised.

​

☀️ The 2030 Solar Threat: Transition to Solar Cycle 26

The year 2030 marks the end of the current Solar Cycle 25 and the beginning of Solar Cycle 26. This transition period brings two distinct threats:

• The "Mini Ice Age" Scenario: Some researchers, including astrophysicist Valentina Zharkova, predict that the Sun will enter a period of low magnetic activity between 2030 and 2040, similar to the Maunder Minimum of the 17th century. This could lead to a "mini ice age," with a global temperature drop sufficient to alter ocean currents, seasons, and the overall climate, potentially causing regional cooling, especially in Northern Europe and the North Atlantic.

• The Unpredictable Start of Solar Cycle 26: While Solar Cycle 25 is expected to conclude around 2030, Solar Cycle 26 is projected to begin shortly after, with onset predictions converging around May 2030. However, solar activity has been stronger than predicted, and this new cycle is expected to be slightly weaker than Cycle 25 but stronger than Cycle 24. The peak of Solar Cycle 26 is forecast for mid-2034 to 2035, with a maximum sunspot number of approximately 118 to 150.

​

Beyond the solar and EMP threats already discussed, the EHMS masonry system is designed to face a range of other man-made hazards. Its integrated shielding and robust construction offer protection against several categories of intentional attacks and electromagnetic interference.

​

🎯 Directed Energy Weapons (DEWs)

The EHMS system's multi-layer shielding is specifically engineered to counter DEWs, which are a significant and evolving threat.

• High-Power Microwave (HPM) Weapons: These are designed to fry electronics using intense microwave pulses. The EHMS's outer reflective layer (using flake graphite) and inner absorptive layer (using magnetite and carbonized bamboo) are intended to attenuate these pulses, protecting sensitive equipment inside.

• Tuned Protection: The system can be optimized if intelligence about the weapon's frequency is available. For example, flake graphite particle size can be adjusted for frequency-selective resonance, and magnetite concentration can be increased for magnetic field coupling.

​

💻 Cyber-Physical Attacks

Modern buildings are increasingly reliant on digital systems for monitoring and control, creating vulnerabilities that attackers can exploit to cause physical damage.

• Structural Health Monitoring (SHM) Backdoors: Researchers have demonstrated backdoor attacks where a physical trigger (like an object placed on a structure) can fool an AI-based SHM system into ignoring a real defect. The attack succeeded in over 80% of cases in the physical world.

• False Data Injection: Cyberattacks can feed bogus sensor readings to industrial computers, potentially causing undetected structural failure or service closures. The EHMS's inherent physical robustness provides a last line of defense if digital systems are compromised.

​

💥 Kinetic and Ballistic Threats

The system's dense, high-strength concrete blocks offer inherent resilience against physical impacts.

• Blast and Ballistic Resistance: Shielding concrete walls, like those integrated into the EHMS, have been shown to be inherently resilient to ballistic and kinetic threats from projectiles and explosions.

• Real-World Example: A ballistic attack like the 2013 Metcalf Transmission Substation incident would not have succeeded if a concrete IEMI (Intentional Electromagnetic Interference) wall had been in place.

​

📡 Electromagnetic Interference (EMI)

Beyond deliberate EMP attacks, buildings face everyday electromagnetic interference from internal and external electronic equipment.

• Weak Points in Walls: Conventional building walls are weak points for electromagnetic shielding, unable to suppress low-frequency interference from equipment inside.

• Composite Shielding: The EHMS addresses this by creating a composite structure with conductive layers, achieving shielding effectiveness of 55 dB in 0.1-1 GHz and 45 dB over 1-18 GHz.

​​

​

The construction solution is the Embedded Hybrid All-Directions Interlocking Masonry System (EHMS), also described as the All-Directions Interlocking Masonry System, with seismic enhancements covered in a related report. Below is a consolidated list of its features, specifications, and performance claims.

​

Identity and Patent Information

• System name: All-Directions Interlocking Masonry System / Embedded Hybrid All-Directions Interlocking Masonry System (EHMS).

• Patent number cited in the main document: 12703973.

• Filing date cited: October 7, 2025.

• Grant date cited: August 11, 2026.

• Assignee: SAMARAEE & DANIEL INNOVATION SPECIALISTS INCORPORATED.

• Inventors: Daniel Anthony Leonard Boot and Muayad S. Dawood Al-Samaraee.

• A related seismic performance report references US Patent 12,709,890, granted August 18, 2026, to the same assignee, covering seismic enhancements.

​

Core Construction Features

• Mortarless dry-stack assembly using precision interlocking blocks.

• Interlocking geometry uses raised ridges, grooves, or dovetailed projections on bearing surfaces, including top, bottom, and ends.

• Alignment is forced mechanically by the block geometry, using friction, gravity, and geometric constraint instead of mortar.

• Three-dimensional “All-Directions” mechanical locking provides six-degree-of-freedom constraint between adjacent blocks.

• Interlocking features on top, bottom, left, right, front, and rear faces restrict translation and rotation in all axes.

• The system resists vertical compression, horizontal in-plane shear or racking, and horizontal out-of-plane bending or bulging.

• Lateral forces are distributed across the entire wall panel rather than concentrated at mortar joints.

• Embedded steel reinforcement is placed within pre-formed block cavities.

• Vertical cores accept reinforcing bars or post-tensioning cables.

• Horizontal channels can accommodate lateral ties or grouted bond beams.

• The hybrid reinforcement provides tensile strength while masonry handles compression, creating composite action similar to reinforced concrete without wet-poured formwork.

• Post-tensioning or prestressing is possible using threaded rods or cables tensioned with hydraulic jacks and anchored at the top and bottom.

• Post-tensioning applies controlled compressive preload, increases shear friction capacity, reduces tensile cracking under service loads, and provides self-centering behavior.

• After an earthquake, the compressed assembly is designed to return toward its original position rather than retaining permanent drift.

• The system is intended to provide ductile, energy-dissipating seismic response through controlled rocking and sliding at block interfaces.

• Micro-movements between blocks are intended to dissipate hysteretic energy without sudden brittle failure.

• Embedded reinforcement acts as a collapse-prevention mechanism after significant displacement.

• Load paths are compression-dominated with continuous tensile elements running from foundation to roof.

• The design is intended to be engineerable using conventional reinforced masonry codes such as TMS 402, ACI 530, or Eurocode 6, with adjustments for dry-stack behavior.

• No formwork is required.

• No mortar or grout curing time is required.

• Once stacked and tensioned, the wall is immediately load-bearing.

• Floors can be placed as soon as the walls below are post-tensioned.

• The system reduces dependence on skilled labor because the interlocking geometry acts as a built-in alignment jig.

• Quality depends primarily on factory-controlled block manufacturing tolerances rather than field workmanship.

• The system is modular and dimensionally coordinated.

• A stated example base module is 200 millimeters by 200 millimeters by 400 millimeters.

• Larger structures use more blocks rather than different block types, though specialty corner, end, and tapered units exist.

• The system can theoretically form non-rectilinear, stepped, battered, or pyramidal walls without loss of structural integrity.

• Embedded utility conduits are included as pre-formed vertical and horizontal chase-ways for electrical, plumbing, and communication lines.

• These chase-ways may coincide with or supplement reinforcement cores, sharing the same volumetric envelope.

• The system is described as scalable for arbitrary plan forms.

​

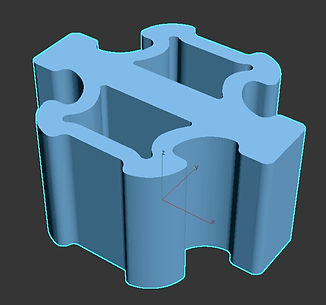

Geometric and Block Specifications

• Radius corners are introduced on all interlocking portions of the blocks.

• Radius corner range: 6 to 12 millimeters.

• Radius corners are intended to reduce stress concentrations at interlocking tabs.

• Radius corners allow increased mechanical movement between two interlocking blocks.

• Increased movement is intended to improve ductility and durability.

• Chamfered edges are included.

• Chamfer angles: between 2 and 4 degrees, optimally 3 degrees.

• Chamfered edges create small gaps of approximately 2 millimeters between adjacent blocks.

• These gaps allow mechanical screws or fasteners to be secured between two blocks for cladding attachment.

• The gaps also reduce friction-induced stress concentrations and allow the wall to “breathe” during cyclic loading.

• A unitary corner block replaces previous two-block corner assemblies.

• The unitary corner block eliminates a potential failure plane at corners.

• An intersecting block allows walls to proceed in three directions instead of two.

• The intersecting block creates more robust connections at T-junctions.

• Some blocks contain an additional hollow cavity with channels.

• These cavities allow increased support members to be introduced between blocks.

• This feature is intended to increase the height of walls that can be built using the block system.

• Hollow cavities also enable optional reinforcement with poured concrete and rebar.

• They can allow vertical post-tensioning or grouted cores.

• Manufacturing tolerances for interlocking features are typically plus or minus 0.5 millimeters or better.

• Blocks are produced using high-frequency vibration or hydraulic compression rather than wet-cast concrete.

• Units are described as dense and low-porosity.

• Compressive strengths are stated as exceeding 20 to 30 megapascals.

• Coefficient of thermal expansion is approximately 10 to 15 parts per million per degree Celsius.

​

Reinforcement and Structural Performance Features

• Vertical reinforcement cores accept reinforcing bars or post-tensioning tendons.

• Horizontal channels may accept lateral ties or grouted bond beams.

• Steel reinforcement handles bending moments, uplift, and diagonal tension.

• Masonry handles compression.

• The system is described as having a redundant, fail-safe load path.

• Tensile forces are intended to be carried by continuous reinforcement, not by masonry.

• The system is intended to provide controlled ductility rather than brittle failure.

• Post-tensioning increases shear friction capacity.

• Post-tensioning eliminates tensile cracking under service loads in the design intent.

• Post-tensioning provides self-centering capability.

• The system is described as capable of seismic resilience through ductile, energy-dissipating behavior and self-centering.

• It bridges traditional masonry, described as simple but weak, and reinforced concrete, described as strong but requiring skilled labor and formwork.

• It enables rapid construction via mortarless assembly, no curing, and no formwork.

• It provides structural redundancy with compression-dominated load paths and continuous tensile elements.

​

Seismic Performance and Validation

• Baseline full-scale shake-table testing was conducted at Sismolab, Universidad Mariano Gálvez de Guatemala, in June 2018.

• The tested model was a full-scale, single-storey room with plan dimensions of 2.4 meters by 2.4 meters and a height of 2 meters.

• The model used dry-stacked interlocking blocks containing vertical reinforcement.

• Two real earthquake records were used: the El Salvador earthquake of January 13, 2001, magnitude 7.7, peak acceleration 0.7g; and the Kobe earthquake of January 17, 1995, magnitude 6.9, peak acceleration 0.82g.

• Testing involved progressive amplitude scaling from 20 percent to 100 percent of the original records.

• Both horizontal components were applied simultaneously.

• The original system demonstrated very high lateral stiffness.

• It behaved essentially as a rigid body under low- to moderate-amplitude motions.

• It survived all ten scheduled test sequences without structural collapse.

• After repeated highest amplitudes, failure initiated through vertical cracks propagating through interlocking tabs.

• Cracking occurred particularly at corners of openings and at junctions between the top course and the bond beam.

• The sharp-cornered interlocking tabs were identified as weak points where stress concentrations led to premature cracking.

• The new design introduces radius corners to address this specific failure mechanism.

• Radius corners distribute contact forces over a larger arc and reduce peak stress.

• This is intended to delay cracking in the tabs and increase load capacity.

• Rounded corners allow greater mechanical movement between blocks.

• This increased movement translates into enhanced ductility.

• Ductility enables the wall to accommodate seismic drift without fracturing.

• Chamfered edges reduce friction-induced stress concentrations and allow cyclic movement.

• The unitary corner block removes a potential failure plane at corners.

• The intersecting block improves T-junction robustness.

• Hollow cavities allow optional grouting and post-tensioning, which further enhance seismic performance.

• The report states that radius corners can be expected to increase ultimate lateral load capacity of connections by a factor of two to three, based on fracture mechanics and stress concentration factors.

• The overall seismic capacity, measured by peak ground acceleration or drift ratio, is projected to be approximately double that of the original system.

• A structure built with the new blocks is projected to resist an earthquake of 1.4 to 1.6 times the acceleration that would have caused failure in the original design.

• This is described as moving performance from a moderate seismic zone to a high seismic zone without increasing wall thickness or material quantity.

• The seismic report concludes that US Patent 12,709,890 achieves approximately double the earthquake resistance of the previous bi-interlocking block design.

• However, the main document notes that the specific EHMS technology has not yet been publicly documented as having undergone shake-table validation at any scale.

• This represents a gap between claimed capabilities and empirically validated performance.

• Shake-table testing limitations include limited carrying capacity of typical shaking tables.

• High-rise models often must be reduced to less than one-twentieth of full size.

• At such scales, gravity acceleration effects cannot be accurately represented and must be ignored or artificially compensated.

• EHMS relies heavily on gravity-induced friction and compression, so highly scaled models may not accurately reflect full-scale behavior.

• Recommended protocols include full-scale component tests, large-scale wall panel tests at one-half scale or larger, and computational compensation methods for testing below one-half scale.

• A maximum credible earthquake scenario, such as a Richter magnitude 9.8 event, is recommended for inclusion in the test protocol.

​

Integrated EMP Shielding Features and Specifications

• EHMS can be integrated with the OMEGA SHIELD EMP protection framework.

• The dry-stack masonry envelope, when coated with conductive and absorptive paints, creates a continuous nested Faraday cage.

• Shielding effectiveness is stated as 60 to 80 decibels across the frequency spectrum characteristic of HEMP and intentional electromagnetic interference.

• The system is stated to meet MIL-STD-188-125 standards for tactical and fixed facilities.

• The outer reflective layer uses overlapping flake natural graphite particles to reflect electric field components via impedance mismatch.

• Magnetite is included for magnetic field absorption via hysteresis losses.

• The inner absorptive layer uses carbonized bamboo powder and additional magnetite to absorb residual energy through conductive losses, magnetic domain rotation, and multiple internal reflections.

• Precision interlocking blocks are filled with conductive grease to ensure electrical continuity across every joint.

• This is intended to eliminate slot-antenna vulnerabilities of traditional mortar joints.

• During an EMP event, the EHMS enclosure provides 60 to 80 decibels of attenuation across 1 kHz to 1 GHz.

• The S-GEEP platform detects EMP with nanosecond latency and captures the waveform signature at 95 percent confidence.

• Dry-stack blocks contract or expand slightly with temperature, maintaining aperture integrity.

​

EMP Shielding Material Specifications

• Formula 1, Natural Graphite Outer Reflective Layer Paint: flake natural graphite 45 microns, greater than 95 percent purity; amorphous natural graphite 75 microns, greater than 85 percent purity; magnetite 10 microns, greater than 90 percent purity; natural latex 60 percent solids as binder; deionized water; gum arabic as dispersant; zinc oxide less than 1 micron, greater than 99 percent purity, for UV stabilization and antimicrobial protection.

• Formula 1 performance: surface resistivity less than 100 ohms per square; attenuation 25 to 35 decibels; applied as three thin coats with total dry film thickness of 150 to 200 microns.

• Formula 2, Carbonized Bamboo/Magnetite Inner Absorptive Layer Paint: carbonized bamboo powder 25 microns, pyrolyzed at 800 degrees Celsius; magnetite 5 microns, 95 percent purity; flake natural graphite 45 microns as conductive bridge; cellulose nanofiber binder; deionized water; bentonite clay as rheology control agent.

• Formula 2 performance: surface resistivity less than 50 ohms per square; magnetic permeability 2.5 to 3.5 at 1 MHz; applied as two thick coats with total dry film thickness of 200 to 250 microns.

• Formula 3, Biochar/Natural Graphite Hybrid All-Purpose Paint: carbonized wood biochar 53 microns, pyrolyzed at 600 degrees Celsius; flake natural graphite; magnetite; pine rosin as thermoplastic binder; raw linseed oil as plasticizer; citrus terpene as biogenic solvent; carnauba wax as surface water repellent.

• Formula 3 performance: surface resistivity less than 200 ohms per square; attenuation 20 to 25 decibels; excellent water resistance and durability in outdoor environments for 2 to 3 years.

• Conductive Grease for Interlocking Joints: flake natural graphite 60 parts; carbonized bamboo powder 30 parts; natural lithium stearate as thickener; refined vegetable oil as base fluid.

• Conductive grease performance: contact resistance less than 1 ohm per square centimeter; applied as a 2 to 3 millimeter layer on all interlocking surfaces; requires inspection every 6 to 12 months in volcanic dust environments.

• Environmental Topcoat for Volcanic Dust Protection: bleached, dewaxed natural shellac; denatured ethanol; carnauba wax.

• Topcoat performance: applied in two layers with dry film thickness of 50 microns each; requires reapplication every 6 to 12 months depending on environmental conditions.

• Material origins are described as natural, renewable, or abundant mineral sources.

• No petroleum-derived polymers, synthetic resins, or manufactured conductive materials are used.

• Geogenic components include natural graphite, magnetite, zinc oxide, and bentonite.

• Biogenic components include carbonized bamboo or biochar, natural latex, gum arabic, pine rosin, linseed oil, citrus terpene, carnauba wax, and shellac.

• The only hybrid-origin ingredient is lithium stearate, with mined lithium and vegetable-derived stearic acid.

• On-site biochar production enables carbon-negative operation.

• Over 90 percent of material content is from geogenic and biogenic sources.

• The system is described as low-toxicity, low-carbon, fully recyclable, and shedding no microplastics.

​

Directed Energy Weapon Protection Performance

• The integrated system is described as a broadband thermal-mechanical-electromagnetic barrier against directed energy weapons.

• Without prior knowledge of the directed energy weapon’s frequency, pulse duration, polarization, and power density, the default configuration operates as a broadband non-resonant attenuator.

• Default attenuation is stated as 30 to 50 decibels across a wide frequency range.

• With prior knowledge, the shield can be tuned by optimizing flake graphite particle size for frequency-selective surface resonance.

• Magnetite concentration can be increased for magnetic field coupling if the weapon uses the H-field component.

• Layer thickness can be adjusted to create a quarter-wave impedance transformer.

• Block interlocking geometry can be modified to present periodic structures that steer the beam away.

• Prior knowledge of pulse duration allows optimization of binder cross-linking density.

• Continuous wave beams require dominance of heat capacity and lateral spreading.

• Pulsed beams require dominance of fracture toughness and delamination resistance.

• At 0 degrees Celsius ambient, higher air density causes greater molecular absorption of certain frequencies.

• The outer layer presents a rough, multi-scale surface that scatters incident energy.

• Natural graphite in the outer layer has high thermal conductivity, approximately 100 to 400 watts per meter-kelvin.

• Magnetite has high heat capacity, approximately 650 joules per kilogram-kelvin.

• Bentonite clay binder undergoes endothermic dehydroxylation, consuming thermal energy and creating a self-cooling gas barrier.

• At 20 degrees Celsius ambient, all materials perform at rated specifications.

• At 40 degrees Celsius ambient, natural graphite flakes exhibit higher baseline conductivity, reducing surface resistivity to approximately 80 ohms per square.

• At 40 degrees Celsius, natural latex binder softens, becoming more flexible but more prone to deformation under sustained beam heating.

• Failure modes include thermal runaway above approximately 1,000 watts per square centimeter for longer than one second.

• Thermal runaway can cause pyrolysis of natural latex and linseed oil binders.

• Dielectric breakdown can occur at very high peak powers, such as gigawatts per square centimeter.

• Dielectric strength of natural polymers is approximately 15 to 25 megavolts per meter.

• Spallation can occur from rapid thermal expansion causing differential expansion between graphite flakes and binder matrix.

• The sacrificial shellac and carnauba wax topcoat is designed to spall first and absorb initial thermal shock.

• Prior knowledge allows pre-deployment of thicker topcoat or addition of refractory mineral fillers such as alumina or magnesia.

​

Construction and Operational Performance

• Installation is dry-stacked without mortar.

• Typical installation rates are stated as 50 to 100 square meters per day per installation crew.

• The construction phase for a standard Omega Cell protecting a fifty-rack data hall is typically 8 to 12 weeks.

• The envelope is certified through electromagnetic field testing using calibrated transient generators and field probes.

• Shielding effectiveness is verified at multiple points across the protected volume.

• The integration phase for Omega Architecture typically requires 4 to 6 weeks.

• The assessment phase typically requires 4 to 6 weeks.

• Full implementation typically requires 6 to 12 months depending on facility size and complexity.

• Tier One dry-stack masonry envelope pricing is stated at $2,500 per square meter of shielded wall surface.

• A typical Omega Cell protecting a fifty-rack data hall requires approximately 200 square meters of shielded surface, resulting in a Tier One investment of $500,000.

• Tier Two Omega Kernel software licensing is stated at $50,000 per server rack per year.

• For a fifty-rack data hall, annual Tier Two license fee is $2.5 million.

• Tier Three Seventeen Headquarters Network storage is stated at $0.15 per gigabyte stored per month.

• For a petabyte-scale repository, monthly Tier Three fee is approximately $150,000, or $1.8 million annually.

• Complete integrated solution for a standard Omega-protected data hall: Tier One capital investment of $500,000 plus recurring annual Tier Two and Tier Three fees of approximately $4.3 million.

• Market projections cited: growth from approximately $5.3 billion in 2026 to over $18.5 billion annually by 2036.

• Ten-year returns on investment across government, financial, and healthcare sectors are stated as between 730 percent and 3,300 percent.

• These returns are based on avoided losses, continuity value, and reduced sovereign risk premiums.

​

Validation Status and Limitations

• The baseline seismic testing validated the original bi-interlocking block system, not the new radius-corner enhanced design.

• The doubling of earthquake resistance for the new patent is described as a logical projection based on the baseline failure mechanism and established fracture mechanics principles.

• The main document states that the specific EHMS technology has not yet been publicly documented as having undergone shake-table validation at any scale.

• This is acknowledged as a gap between claimed capabilities and empirically validated performance.

• Shake-table testing of highly scaled models may not accurately represent EHMS behavior because the system relies on gravity-induced friction and compression.

• Recommended validation includes full-scale component tests, large-scale wall panel tests at one-half scale or larger, and computational compensation for smaller scales.

• A maximum credible earthquake scenario, such as Richter magnitude 9.8, is recommended for testing.

• The integrated EMP and Omega Architecture performance figures are presented as design targets, operational specifications, and projections, not all of which are described as independently validated in the provided documents.
